V2022.06 WiFi Super MB Pro M6 MB Star Diagnosis Supports HHTWIN for Cars and Trucks

V2022.06 Super MB Pro M6 MB Star Diagnosis Supports HHTWIN for Cars and Trucks

Best replacement of MB SD C4/C5,Supports original BENZ Dealer software.

Highlights
Perfectly replaces normal MB SD C4/C5
Supports Original Benz Dealer Diagnostic Software
Supports firmware update without installing the battery
Support Mercedes-Benz models, covering 12v car, 24v diesel truck & bus, MPV etc.

1. SUPER MB PRO M6, with the strong penetration of wireless test and WIFI signal, relieves the dependency on communication transmission cable during test, and greatly reduces restriction on testing distance. The device adopts the framework concept of original C6 diagnostic tool, is able to replace original MB Star C4.  Durable and easy to carry.

2. ABS+PVT plastic structure adoption has the advantages as follows:
1) Impact-proof & easy to carry
2) Lower consumption on product shell against wireless signal
3) Great advancement of wireless communication distance & stability


3. SUPER MB PRO M6 adopts double-radiation mode (radiation fan & radiation fin).

Radiation fan will automatically turn on high-power radiation mode when SUPER MB PRO M6 internal temperature over 35℃, greatly improving the stability and safety when programming.


4. Built -in network interface prevents deformation and damage from impact.

5. SUPER MB PRO M6 is the only diagnostic tool on the market that is highly consistent with the original MB Star C6:

1) Fully compatible with the original software.
2) You can directly upgrade the newest firmware without installing additional driver.

6. Can perform as the same functions as that of the original:
Compatible with the Mercedes Benz models with protocol DOIP, K-line, CAN Low, Can High, LIN, RS485, etc, works with the old cars and new cars.

7. Support diverse Mercedes-Benz models, covering 12v car, 24v diesel truck & bus, MPV etc.

8. Support firmware update without installing the battery, but directly plug the device to the OBD port of the car to supply power, you do not need to worry about that the firmware will be damaged in the process of update.

2022.06 MB Star Diagnostic Software includes:
Xentry 2022.06
DAS 2022.06
EPC 2801.11
WIS 2021.10
SDmedia offline 2014
Vediamo 5.01.01
Vediamo Database 2019
Star Finder 2008 & 2020
PL73 2019
HHTWIN
DTS Monaco 8.16.015 & V8.16

Support Languages: English, Croatian, Czech, Danish, Dutch, Finish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian; Spanish, Swedish, Turkish, Chinese.

Passenger Car Supported List:
A(176),  A(169),  A(168),  B(246),  B(245),  CLC(117),  C(204)  C(203),  C(202),  190(201),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),  S(220),  S(140),  S(126),
E(207),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),  CL(215),  CL(140)  SLK(172),  SLK(171),  SLK(170),  SL(231),  SL(230),  SL(129),  SL(107),  SLS(197),
M(166),  M(164),  M(163),  G(463),  G(461),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),S(220),  S(140),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),
CL(215),  CL(140),  SLK(172),  SL(231),  SL(230),  SL(129),  SL(107),SLS(197),  M(166),  M(164),  M(163),  G(460),  GL(164),  GLK(204),  R(251)

Van Supported List:
MB 100(631),  T1,  SprinterIII,  SprinterII,  SprinterI,  Sprinter900,  Citan,  Vito(639),  Vito(638), V(638),   Viano(639),  T2,  Vario,  Vaneo(414)

Truck Supported List:
Actros963/4,  Actros2,3,  AtegoIII,  AtegoII,  AxorII,  Eonic,  Zetros,  Actros,  Atego Light,  Atego Heavey,  HPN M96,  Atron,  HPN M2000,  SKL,  FSK,  Further model series

Unimog Supported List:
U20,  UGN,  UHN

Bus Supported List:
TRAVEGO,  INTOURO,  INTEGRO,  CITARO,  CAPACITY,  CITO,  TOURISMO,  O350/O403, CONECTO,  O404,  O405-O408,
Minibus,  OC500,  TOURO,  TOURINO,  MBC,  MULITEGO,  O500,  O500/OH,  OH,  OH368,  OF,  OF384,  LO,  O400, FURTHER MODEL SERIES

Super Sports Car Supported List:
SLR(199)

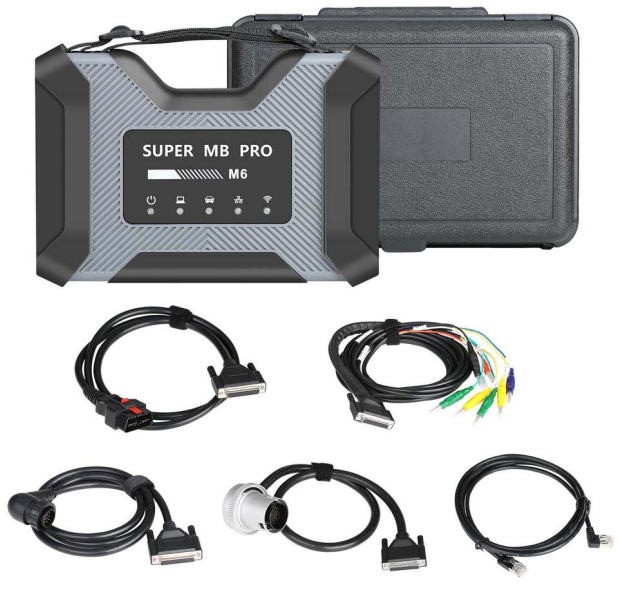

Package includes 1:
1pc x SUPER MB PRO M6 Main Unit
1pc x OBDII 16Pin Cable
1pc x 38PIN Cable
1pc x 14PIN Cable

1pc x 8PIN Cable

1pc x Lan Cable

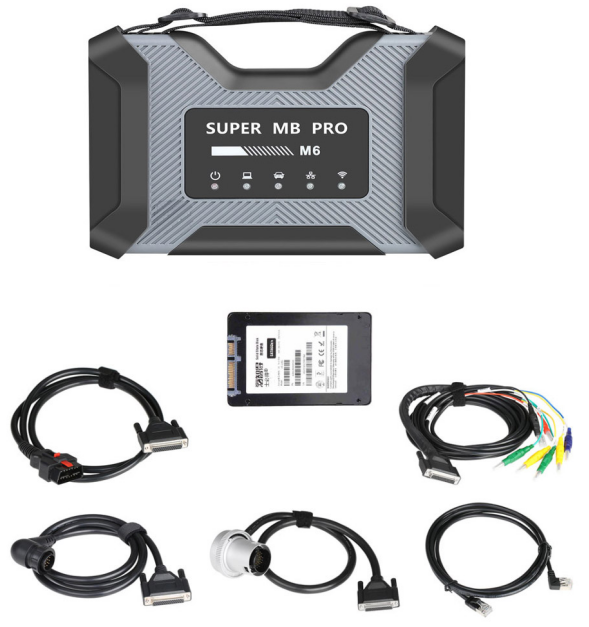

Package includes 2:
1pc x SUPER MB PRO M6 Main Unit
1pc x OBDII 16Pin Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 8PIN Cable
1pc x Lan Cable
1PC x 256G SSD (Benz Dealer Diagnostic Software)

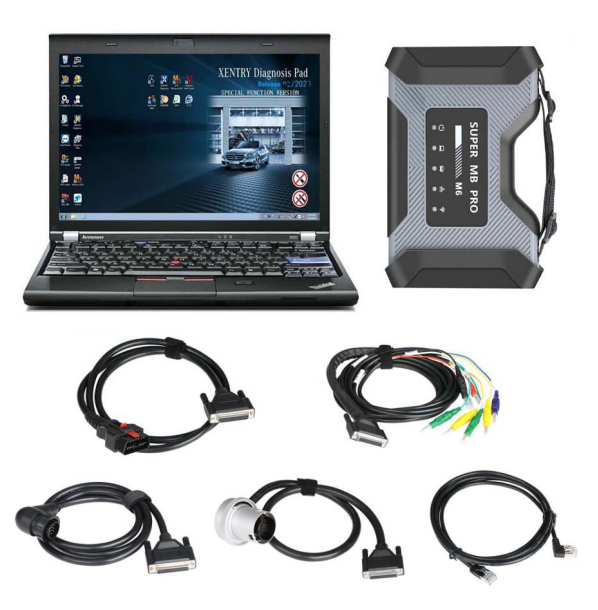

Package includes 3:
1pc x SUPER MB PRO M6 Main Unit
1pc x OBDII 16Pin Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 8PIN Cable
1pc x Lan Cable
1pc x Second Hand Laptop Lenovo X220 Laptop （All software activated. All system ready to use）

Second Hand Laptop Lenovo X220 Specification:
Brand: Lenovo
Condition: Used
Type:  Laptop/Notebook
Screen Size:  14.0
Processor Type:  Intel (R) Core(TM) I5-2520M CPU
Processor Speed:  2.50 GHz
Memory: 4GB
Hard Disk：256G SSD

Difference between MB Star Diagnsotic Tools:

Item Name	Super MB Pro M6	MB STAR C4 Plus	MB STAR C4	MB STAR C6
Diagnosis Full System	YES	YES	YES	YES
Online Programeming	YES	YES	YES	YES
Offline Programeming	YES	YES	YES	NO
Brush to hide	YES	YES	YES	YES
Maintenance service	YES	YES	YES	YES
Xentry	YES	YES	YES	YES
DAS	YES	YES	YES	YES
HHTWIN	YES	YES	YES	NO
EPC	YES	YES	YES	YES
WIS	YES	YES	YES	YES
Vediamo	YES	YES	YES	NO
DTS Monaco	YES	YES	YES	YES
Star Finder	YES	YES	YES	YES
PL73	YES	YES	YES	YES
SDmedia	YES	YES	YES	YES
Doip	YES	YES	NO	YES
Truck/BUS	YES	YES	YES	Portion
Firmware Update	YES	YES	YES（Need to install batteries）	YES
wire	Direct connection	Direct connection	Point to point	Direct connection
wireless	LAN	LAN	LAN	LAN/USB Cable
Software Version	2022.06	2022.06	2022.06	2022.06
Hardware Version	OS:2.3, CSD:2.11	OS:2.3, CSD:2.11	OS:2.3, CSD:2.11	1.84
Heat dissipation	Heat sink + fan Heat sink	Heat sink	NO	NO
Software Language (Can switch directly)	ENGLISH/ BULGARIAN/ DANISH/ GREEK/ SPANISH/ FRENCH/ ITALIAN/ KOREAN/ POLISH/ ROMANUAN/ SERBO-CROATIAN/ TURKISH/ CZECH/ GERMAN/ FINISH/ HYNGARIAN/ JAPANESE/ DUTCH/ PORTUGUESE/ RUSSIAN/ SWEDISH/ CHINESE
