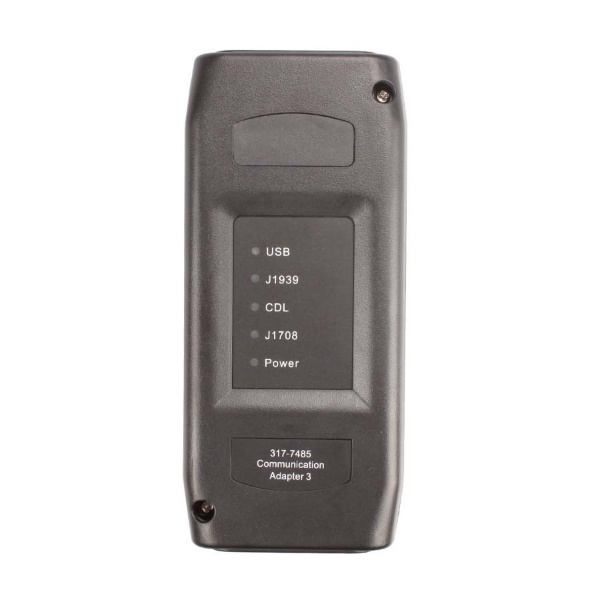

2022A Version Perkins EST Interface Diagnostic tool (Real Perkins EST CA3 Interface)
Real Perkins Interface EST 2015A/2018A/2022A NO WIFI and Bluetooth
Notice:It contains one-time free activation
Perkins Interface EST 2015A/2018A/2022A software should install at the Windowns 7/8/10 system.
Perkins features:
EST is comprised of a hardware and software PERKINS EST Diagnostic Adapter . EST is comprised of a hardware and software EST is comprised of a hardware and software interface kit, which a user can use to communicate with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Powerwizard control panels. This communication is established via a J1939 data link. All in all, the EST interface kit provides the user with an effective tool in diagnosing engine problems and the ability of configuring system parameters.
Perkins EST Function:
Override Powerwizard level three passwords
Configure and/or change system parameters
Display, graph and record logs of parameter status
Display the status of a group of parameters (temperatures, pressures, etc)
View and clear active and logged diagnostic codes
View and clear active and logged event codes
Display, view or change the current Configuration File or Base level Flash File
Upload, download and save configuration files
View a list of irregularities logged by the ECM (engine control module)
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results.
Why should an FG Wilson dealer invest in the Electronic Service Tool?
It provides the technician with an essential tool by facilitating the troubleshooting of electronic engines. As a matter of opinion, troubleshooting an electronic engine without EST is like troubleshooting an electrical panel without a multimeter Alex Cabrices FGW Latin America & Caribbean Service Advisor . Essential in replacing an ECM on a Perkins 2300/2800 series engine. A blank ECM can only be configured using EST. Essential in replacing or retrofitting an FG Wilson Powerwizard control panel module - the new standard in FG Wilson control systems. A blank module can only be configured using EST (installing the base flash file into a blank Powerwizard module). Enables the dealer to upload, download and save customer configuration files. Allows bypassing Powerwizard level three passwords. Enables dealers to update the software versions of customers Powerwizard control panels, as required. New software releases can enhance the control panels functionality. Enables dealers to install additional Powerwizard language files, as required.
How to get Perkins EST activation code?
After you receive Perkins EST, please install the software, and after the installation is done, it will ask for activation code, please send us the ID showing on the screen, we will send back you activation code.

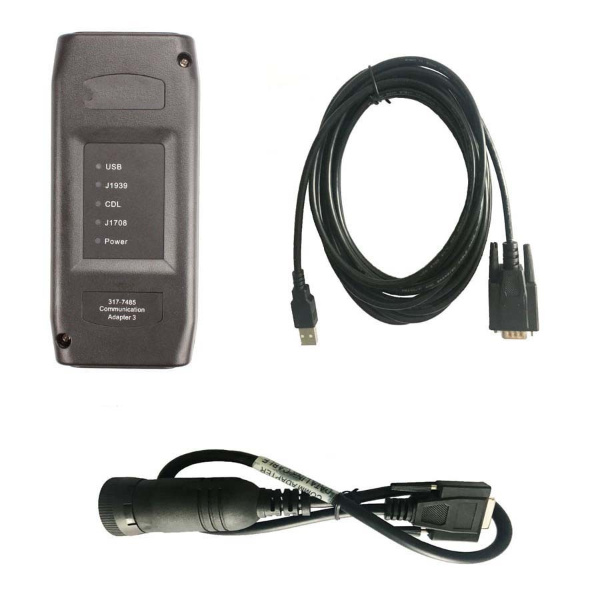

Package List:
1.Real Perkins EST interface

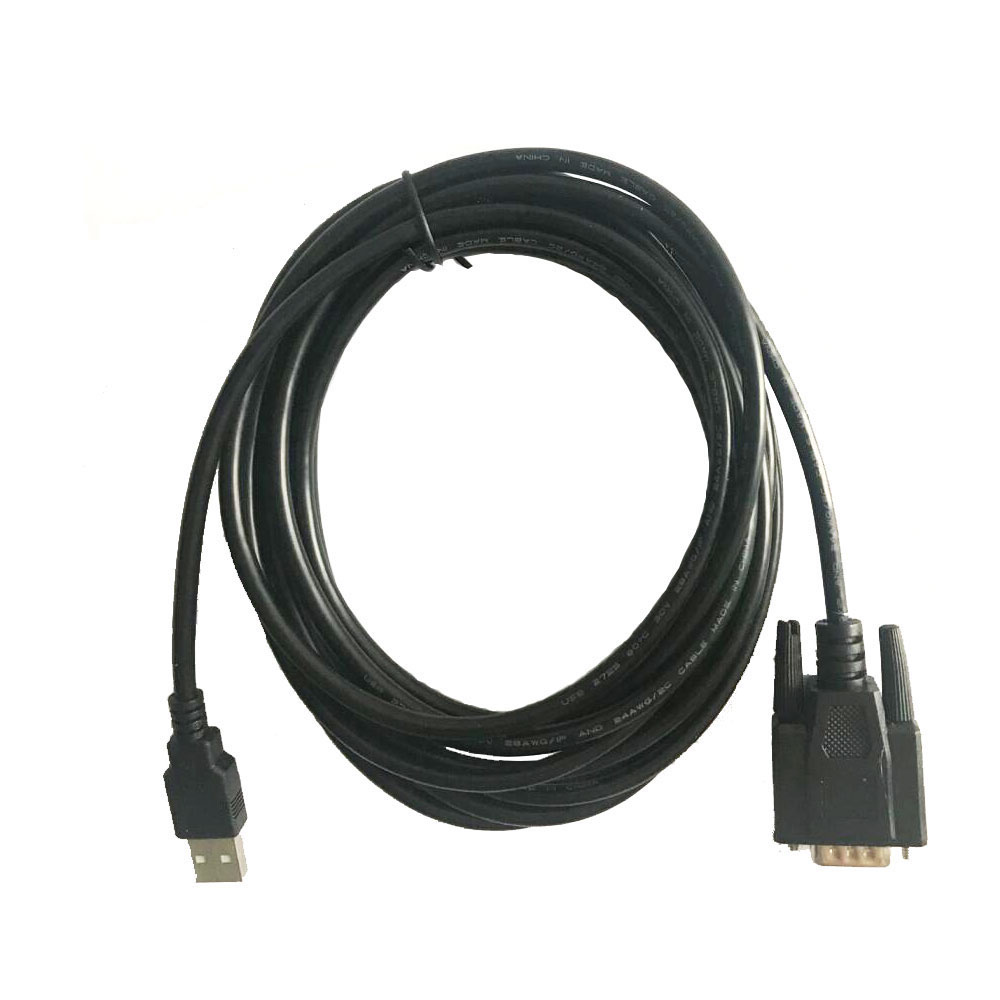

2.USB Cable (From device to your computer)

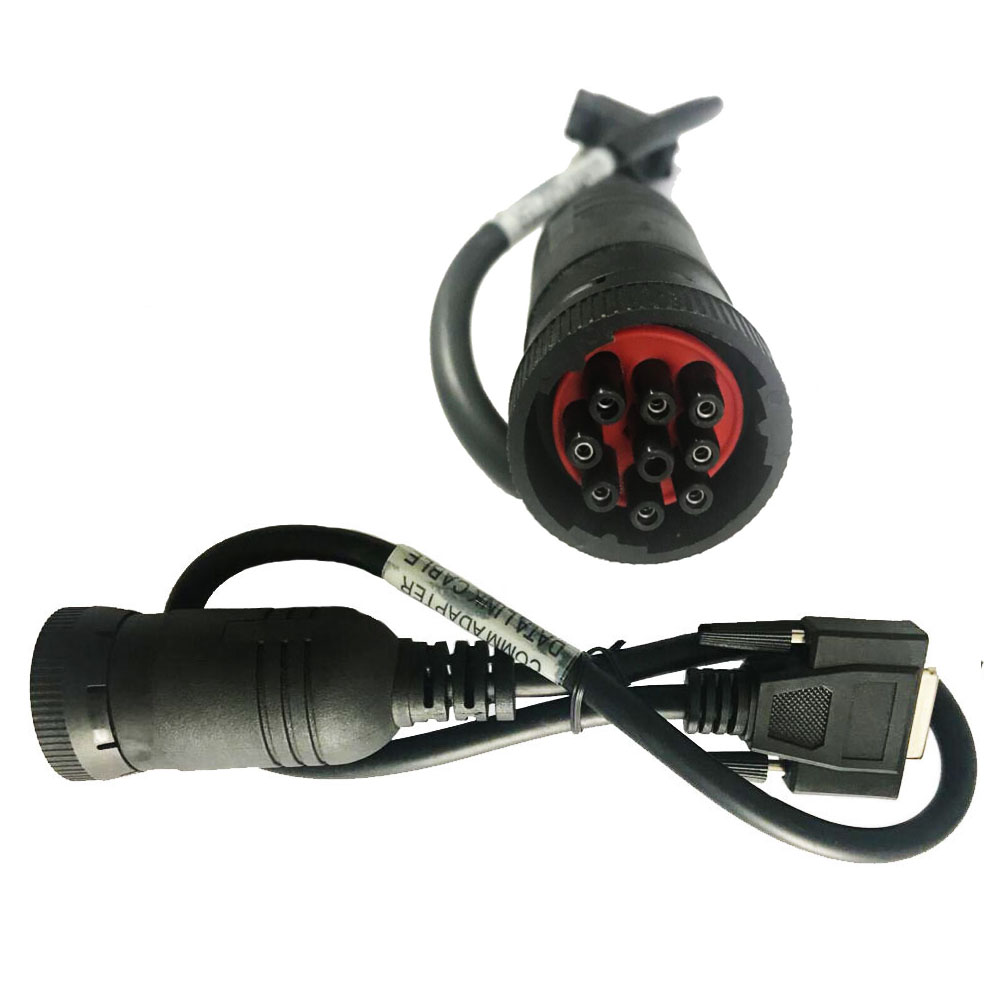

3.J1939/J1708 9pin cable (from device to your truck)
4.Perkins software 2015A or 2018A CD
Original Factory Perkins EST interface Compare With OEM Perkins EST interface
1.Original Factory Perkins EST interface can use once pluged, no need install the USB drive, the software can automatic realize it for ET3 Adapter, and the machine can automatic weld the high quality Circuit board, quality will be more reliable.
2.The OEM Perkins EST interface need use USB Drive to install, and need choose the COM Port

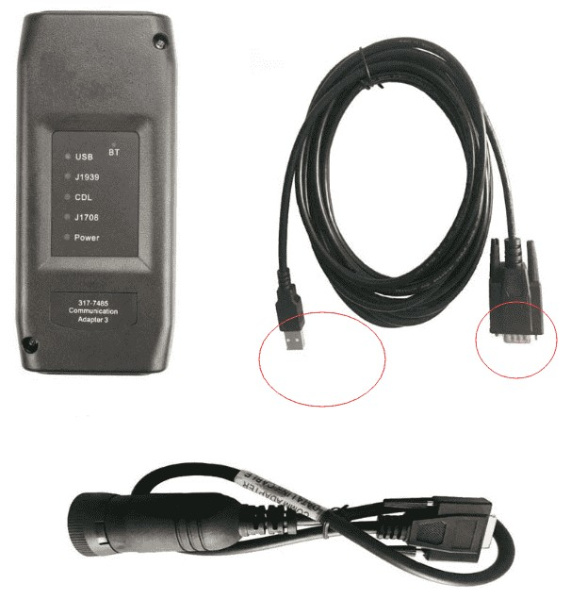

Real Perkins EST Interface

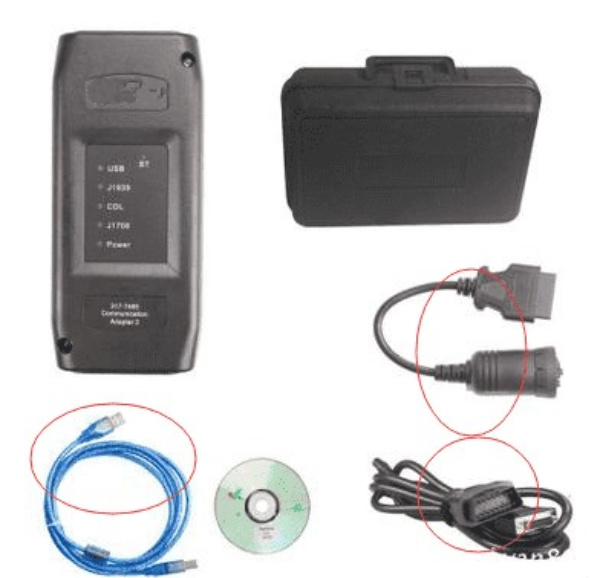

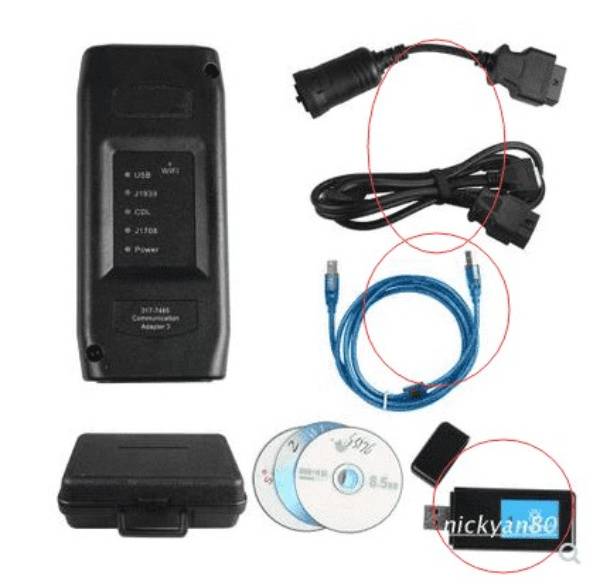

Fake Perkins EST Interface
