New Holland Electronic Service Tools (CNH EST9.5 9.4 9.2 8.6 engineering Level) CNH DPA5 kit diagnostic tool

In Stock. History 473 sold. Item No. ABC41311



Latest price: US$403.20
Buy Now: US$336
USD 336.00 CAD 478.13 EUR 335.93 GBP 297.49
16% off
Shipping:
Express Shipping Service    Estimated delivery time: 3-5 working days.See details »
Weight:
3.0KG
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »
Related Products
US$615
7
US$280
3
US$93
2
US$648
US$1099
5

Product Description


New Holland Electronic Service Tools(CNH EST 9.5 9.4 9.2 8.6 engineering Level )+ Diagnostic Procedures + White CNH DPA5 kit diagnostic tool

NOTE:

1.If you choose CNH EST 8.6 Dealer Level Software, we will provide you with a registration machine, and you can activate the software yourselfMinimum Specifications：
Processor: Intel Core i5 Processor or higher;
RAM Memory: 4 GB or greater;
Operating System: Windows OS: 64-bit (Mandatory)
Windows 7
Windows 8.x
Windows 10
Hard Drive: 250 GB or greater;
2.If you choose CNH EST9.5 9.4 Dealer Level Software for 1 PC activation (we will remote help you installation by teamviewer) Full license
Minimum Specifications：
Processor: Intel Core i5
RAM Memory: 8 GB or greater;
Operating System: Windows OS: 64-bit (Mandatory)
Windows 10
Hard Drive: 250 GB or greater;

Supported languages: English, Italian, Russian, Polish, Spanish, French, Portuguese, German, Dutch, Danish.



The brand new version of New Holland CNH EST works with OS Windows 8 64 bit / 8.1 64 bit / 10 64 bit, except Home editions). If you have windows 7, we can offer you a previous version of CNH EST, as the 9.4 versions no longer support Windows 7 and in some cases won't even loading.
New minimum PC specifications

All computers must use a 64-bit version of their operating system. The older 32bit options are limited to 4 gigabytes of RAM, and cannot provide enough performance to run these programs.

Minimum Specifications

Processor: Intel Core i5 Processor or higher;
RAM Memory: 8 GB or greater;
Operating System: Windows OS: 64-bit (Mandatory)
Windows 7
Windows 8.x
Windows 10 (Recommended)
Hard Drive: 250 GB or greater;
Ports: One 9 pin Serial port (preferred) OR USB to RS-232
Converter - FTDI Chipset)
Two USB ports
10/100 Ethernet
WiFi 802.11b / g
Bluetooth
Mobile Wireless (recommended)



The following brands of the CNH group are covered:
New Holland (Agriculture and Construction)
New Holland FK (Fiat-Kobelco)
New Holland O&K (Orenstein & Koppel)
CASE (Agriculture and Construction)
STEYR
KOBELCO
Iveco (Astra) (articulated dump trucks only)
Flexi-Coil
Sumitomo (S.H.I.)
Link-Belt

New Holland Electronic Service Tool allows you to:
 • Check the status of parameters;
 • Retrieve faults;
 • Run diagnostic tests;
 • Make ECU and parameter programming;
 • Monitor active and logged diagnostics;
 • View and change ECU configuration;
 • View diagnostic procedures and schematics.
 • Troubleshoot problems;
 • Run scope diagnostics;

E.A.S.y - additional engine diagnostic and download tool for connection directly to ECU to perform diagnostic, programming and ECU reload by K-Line protocol.

CNH Engine Download Tool operates from within the EST program to perform the following engine download operations:
 • Provide Engine Control Unit (ECU) programing update capability;
 • Provide blank ECU initialization and programming capability;
 • Provide ECU programming reassignment for blank and other ECUs;
 • Provide ECU download crash recovery.

NOTE:
This DPA5 can  perform diagnostic, programming and ECU reload by K-Line protocol with E.A.S.y software for Iveco engines.

CNH DPA5 Interfaces OEM 380002884. This interface is  Working 2 CAN and K line ( for diagnostic CASE and New Holland with IVECO Engine with EASY under EST

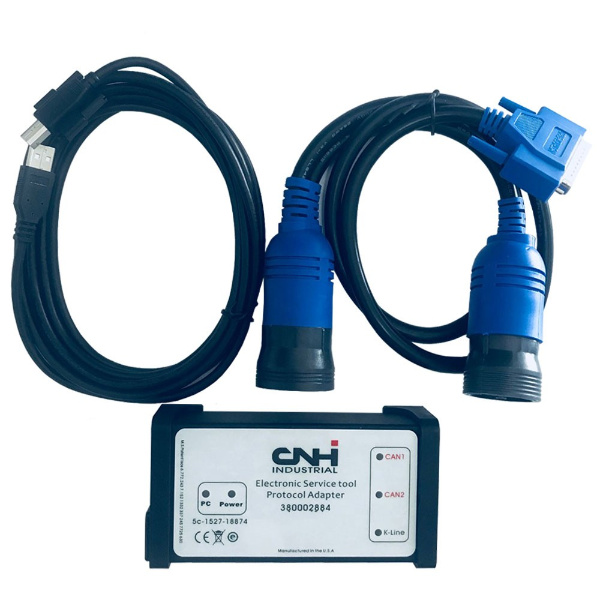

Package :
1.cnh est DVD for 1 PC activation (we will remote help you installation by teamviewer )

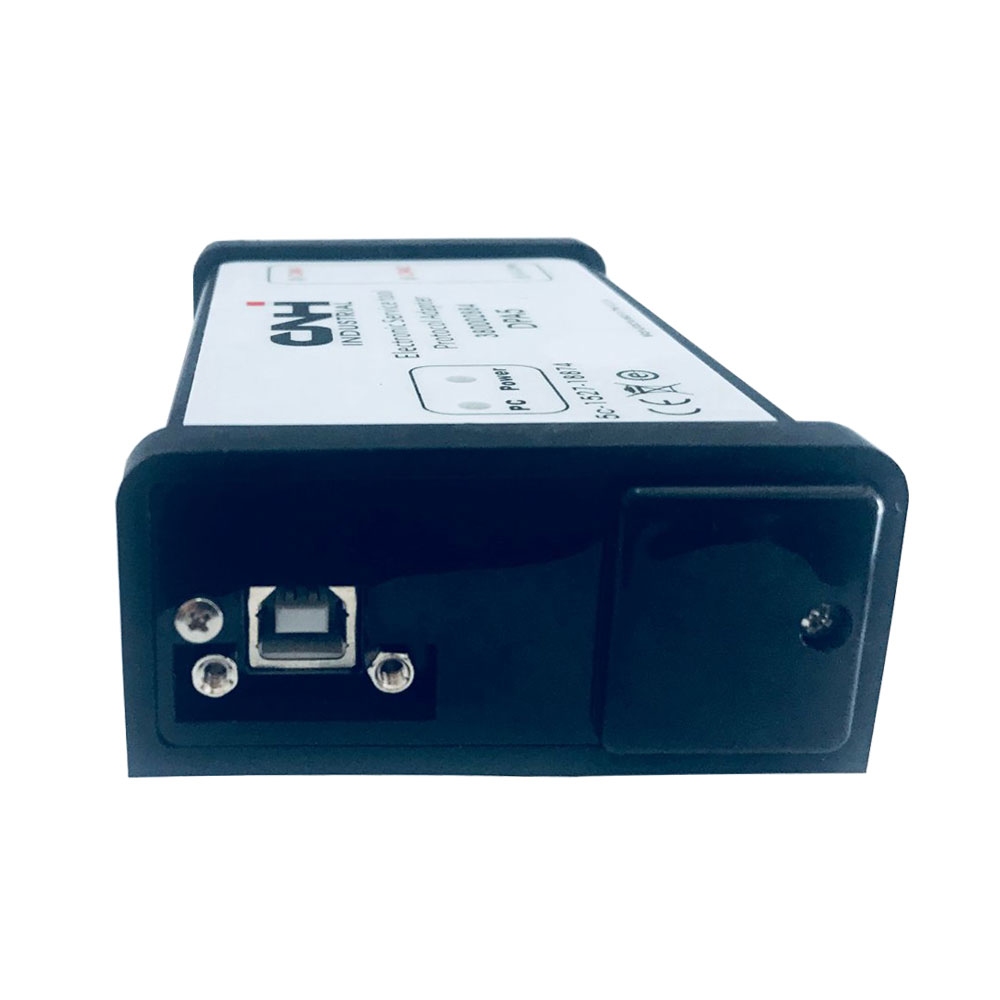

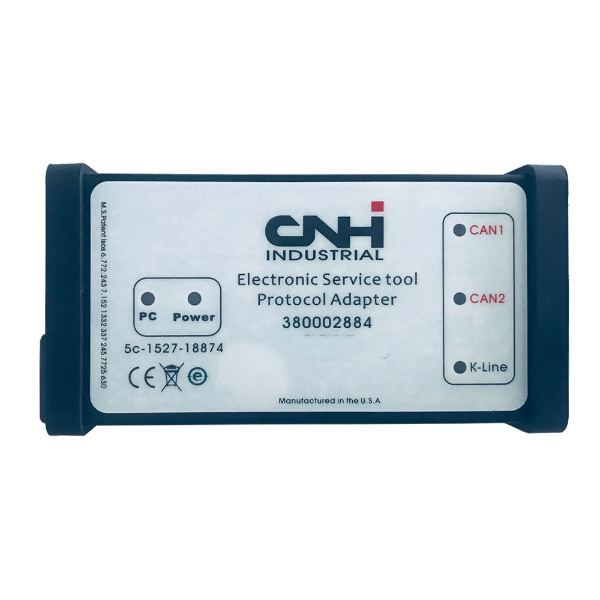

2 .Dearborn Protocol Adapter 5 (DAP5 white interface) full New interface for New holland and Case

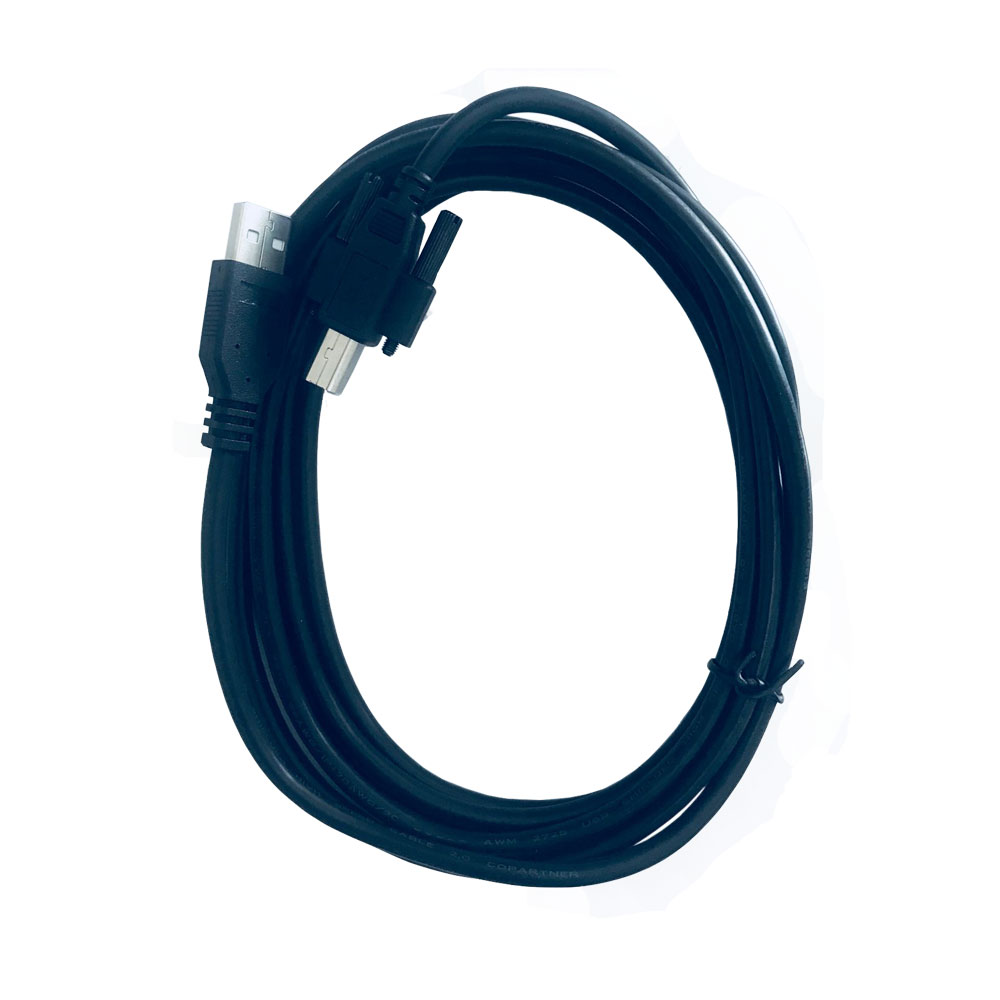

3.Usb cable

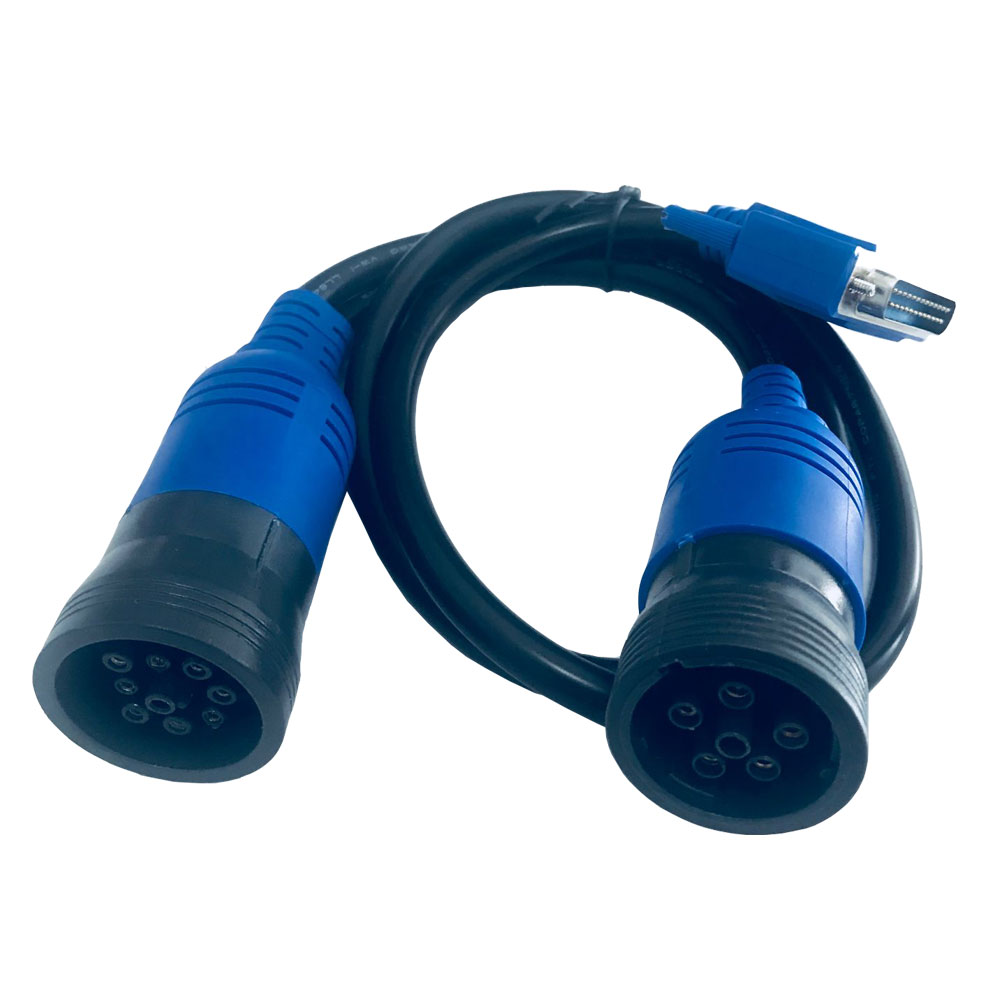

4.New 9-pin Deutsch CNH cable
5.ToolBox
One Year Warranty
