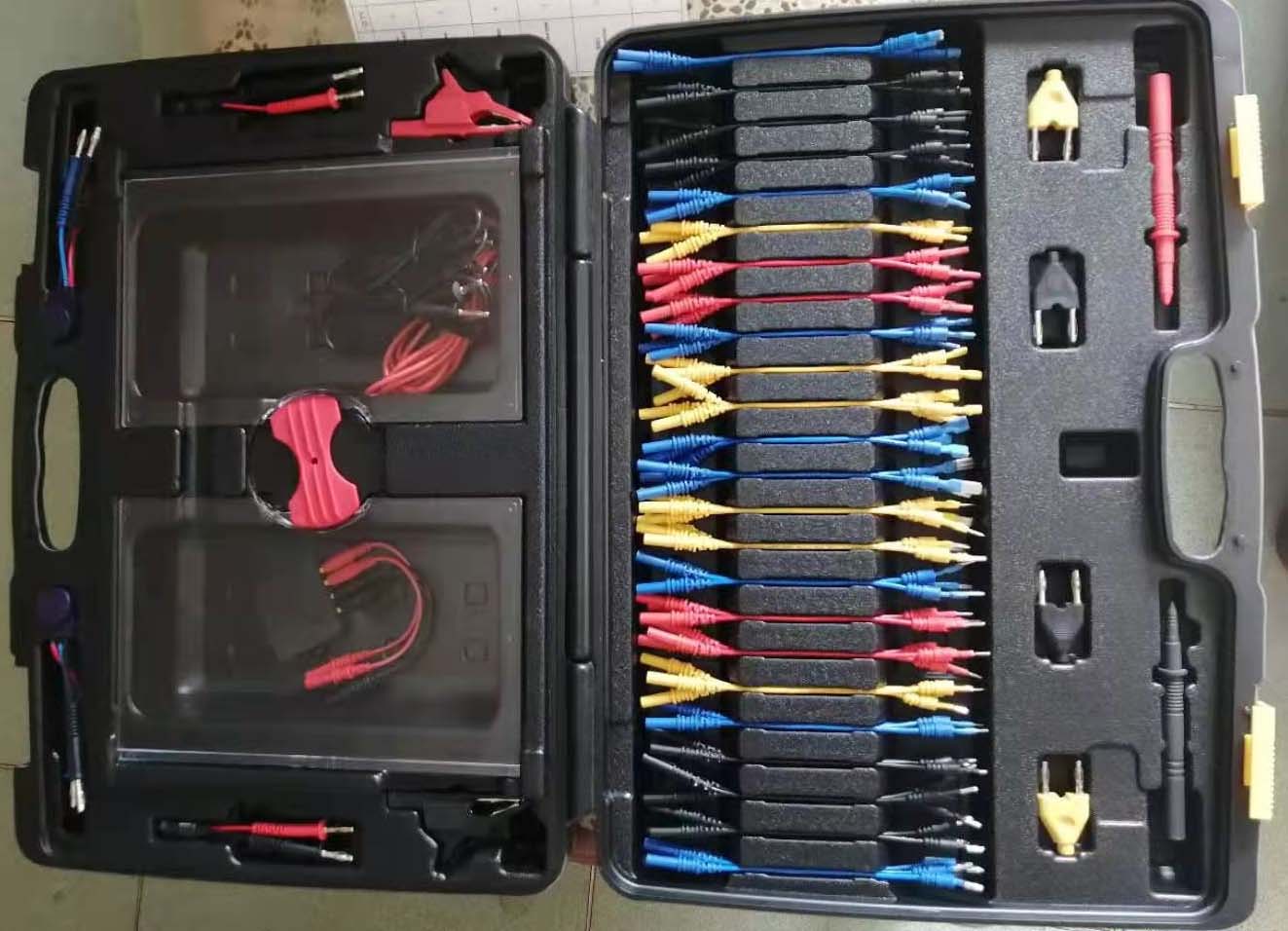

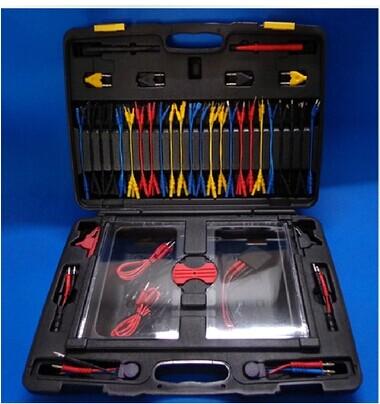

Auto Multi-Connector Kit ADD101A
Function:
1.
When checking the parts, it could connect the back of terminal
directly, would not to damage the circuit, reduce the circuit rust and
avoid to adding impedance.
2. Apply to any Automotive Multimeter, the
extended line of probe for oscilloscope. More convenient connection and
checking rapidly.
3. When checking the electric current, only use the lines to connect the circuit, do not need to cut the electric wires.
4.
Variable Resister can simulate the pretend signal of coolant
temperature sensor, throttle valve sensor and send the pretend signal to
computer. It would avoid risk to change the new parts again.
5.
Equip 2 sets LED light. It can supervise hall effect, photoelectric
signal, nozzle, electromagnetic valve, electromagnetic valve of
transmission shift gear....and control signals.
6. SRS Connector can simulate airbag and routed contracting device of safety belt to avoid accident or miss-judgment.
7. Various wires in this box, it is suitable for the Europe, America and Japan terminal. High common use and convenience
Feature:
1.Wiring
Assistance Kit: A perfect wiring circuit checking tool Can be used
quickly for adjustment and assists technician in checking the car
problems accurately.
2.Its variable Resistors can be used to simulate
coolant temperature sensor signals, throttle valve sensor signals to
vehicle ECU to avoid unnecessary new parts replacement.
3.Complete set of various wires in the case that are suitable for most European, American and Japanese made terminals.
4.Equipped
with 2 sets of LED lights; it can be used to monitor Hall Effect,
photoelectric signals, nozzles, electromagnetic valve of transmission
shift gears and control signals.
5.SRS connector provided can simulate airbag and routed contracting device of safety belt to avoid accident or miss-judgment.

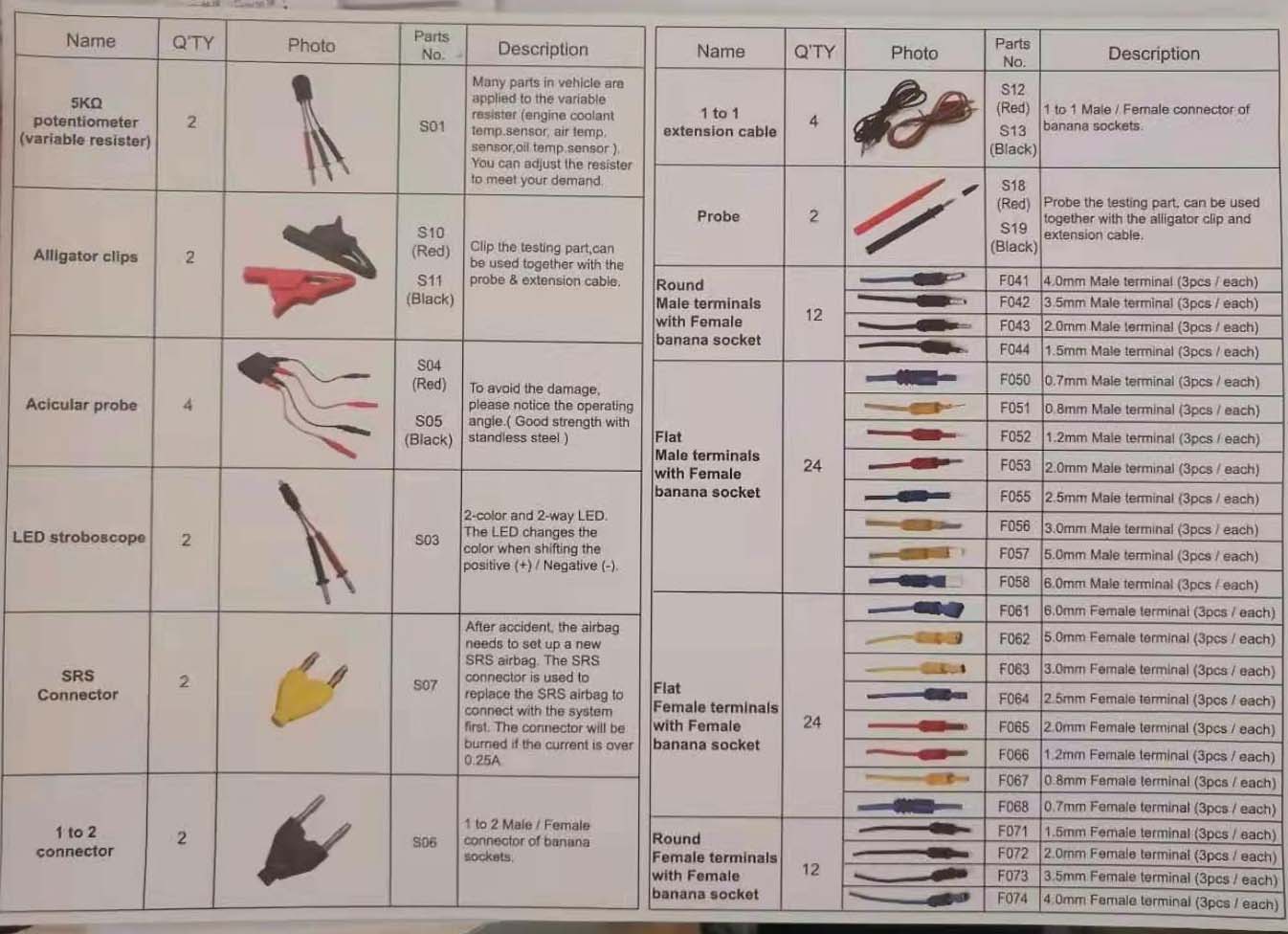

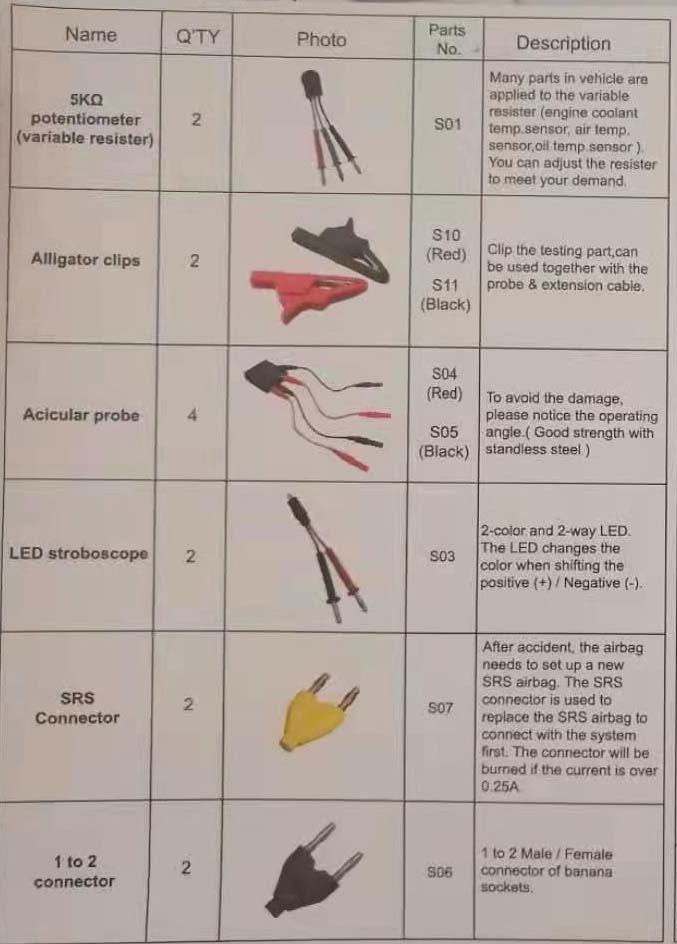

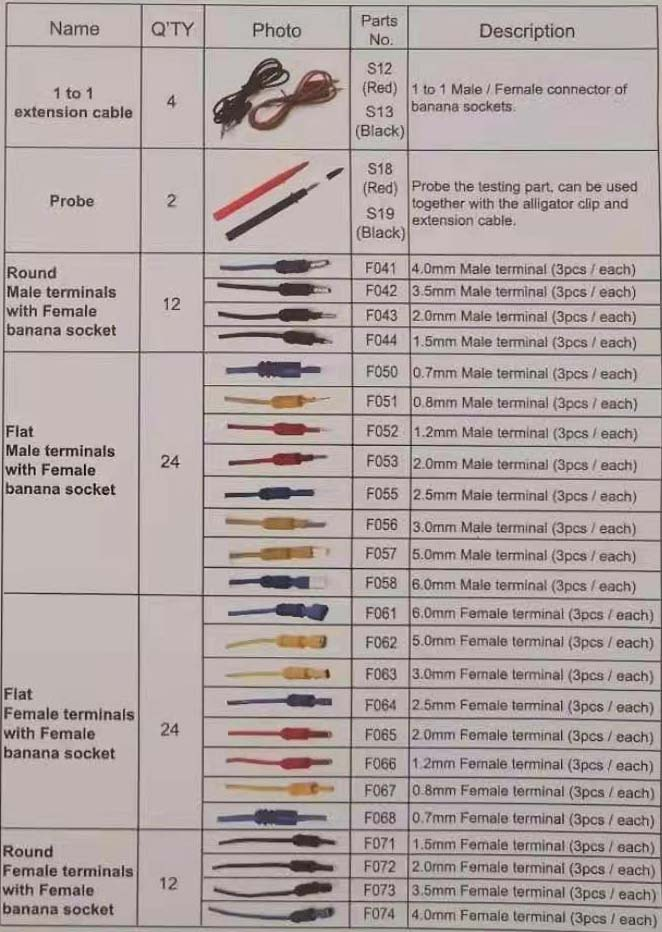

Packing:
1. 5KΩPotentiometer (Variable Resister) 2pcs
2. LEDStroboscope 2pcs
3. Various automotive flat terminals 48pcs
4. Acicular Probe 4pcs
5. Various automotive circular terminals 24pcs
6. Probe 2pcs
7. 1 to 2 connector 2pcs
8. Alligator clip 2pcs
9. 1 to 1 connector 4pcs
10. SRS connector 2pcs
